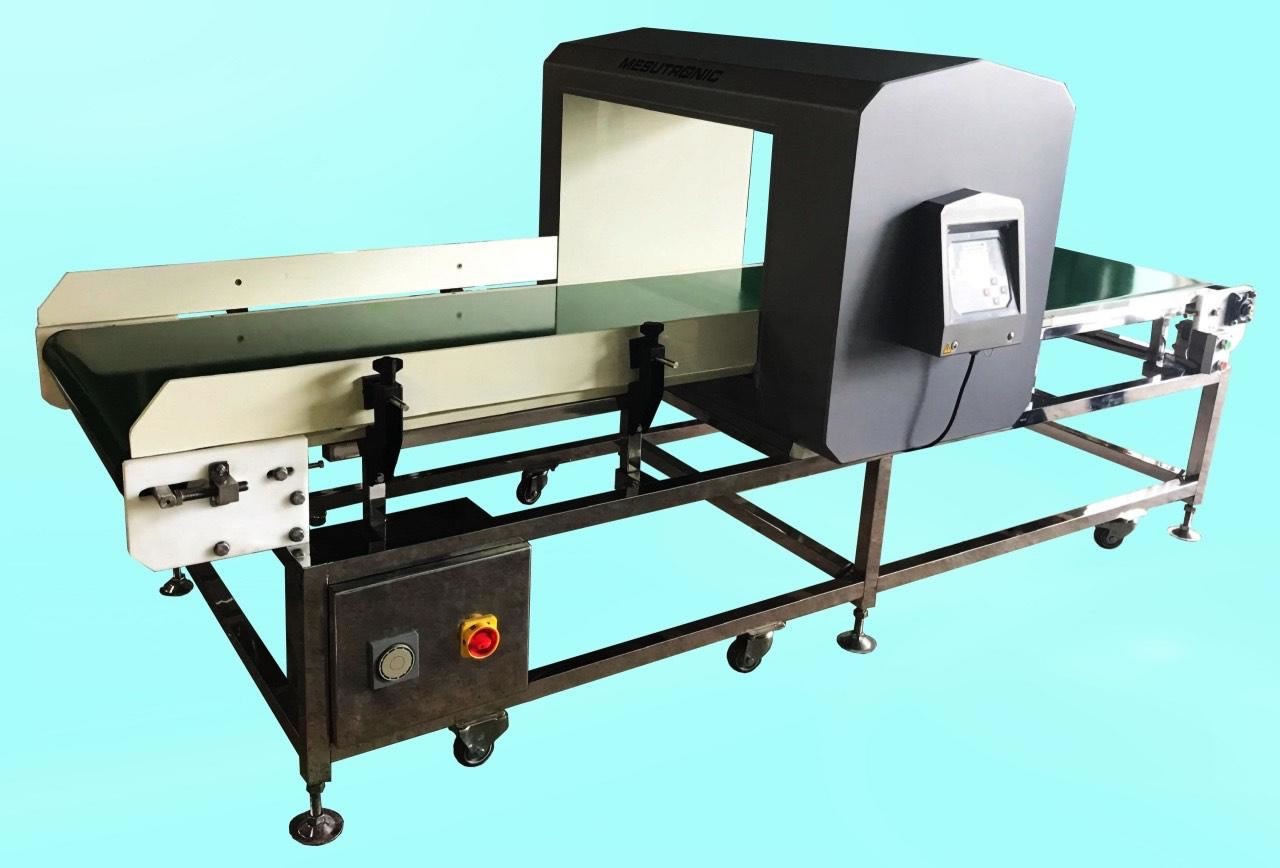

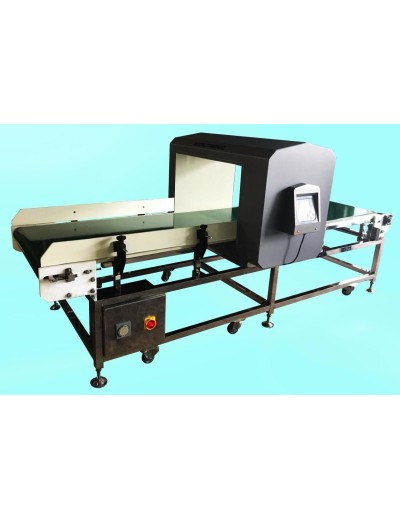

Metal Detector METRON 05 - Model MT 5.2

Model MT 5.2 800/500: Specialized metal detector series for dry and wet products

High-speed digital processing technology
Compare 02 signal channels
Automatically compensate product sensitivity
Automatic temperature compensation
Auto balance
Digital Noise Filtering
Interference self-diagnosis system
Memory 49 products
RS 232 / 485 data communication port (OPTION)
Control with 3 soft keys and liquid crystal display
There are "POWER" and ERROR" indicator lights.
Reliable detection of metal contamination in products such as: Iron, Lead, Aluminum, Copper, Stainless steel ......

Dimensions of probe cavity:
800 mm (width) x 500 mm (height)
Structure :
Powder coated aluminum housing, IP65 . watertight
Detectability:
Loaded with Fe (Iron) Ø 1.5 – 2.0 mm. Nfe ( Nonferrous Metal ) 2.5 mm , SS ( Stainless Steel ) 3.0 - 3.5 mm
Actual detection varies according to the weight, size and temperature of the product.
Produced by MESUTRONIC GERATEBAU GMBH (Germany)
Information about Conveyor Belt:
- 304 . stainless steel frame structure
- Total length: 3000 mm
- Overall width: 900 mm
- Inlet and outlet height: ±700 mm
- Conveyor width: 700 mm
- Conveyor type flat conveyor PVC, according to food standards
- ​Motor 0.2 kw, 220 V/1Ph/50Hz
- Metal detection, Conveyor stop and buzzer alarm
