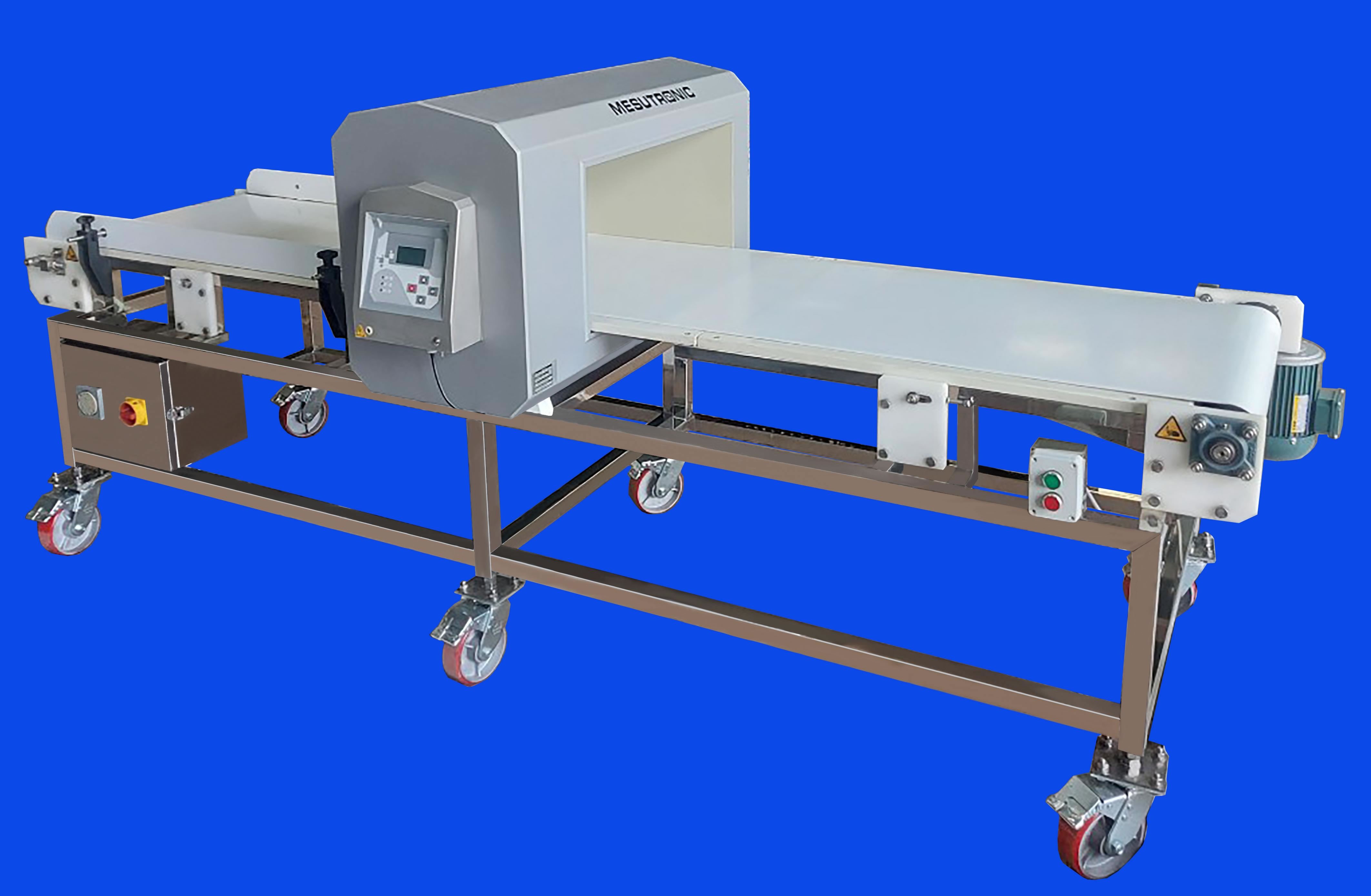

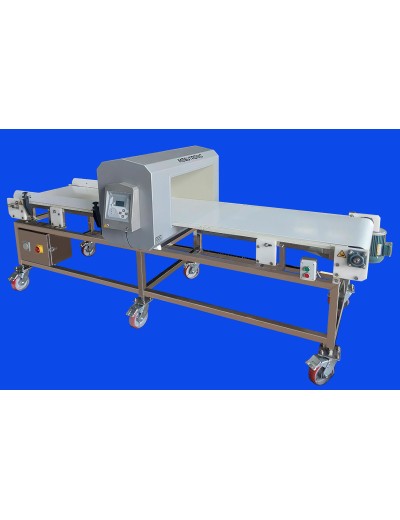

Metal Detector for Packaged Food conveyor belt

Detector series specialized in packaged food

Detector cavity size:
700 mm (width) x 350 mm (height)
Structure :
Powder-coated aluminum housing, IP65. watertight
Detectability:
Loaded with Fe (Iron) Ø 2.0– 2.5 mm. Nfe ( Nonferrous Metal ) 2.5-3.0 mm, SS ( Stainless Steel ) 3.0 - 3.5 mm
Actual detection capacity varies according to the weight, size and temperature, and humidity of the product.
Produced by MESUTRONIC GERATEBAU GMBH (Germany)
Information About Conveyor Belt:
- 304. stainless steel frame structure
- Total length: 3000 mm
- Overall width: 900 mm
- Inlet and outlet height: 780 ± 40 mm
- Conveyor width: 600 mm
- Conveyor-type flat conveyor PVC, according to food standards
- 0.4 kw motor, 220 V/1Ph/50Hz
- Metal detection, Conveyor stop, and buzzer alarm
